Today, we're diving into Intel's highly anticipated Panther Lake SoC, slated for release in the latter half of 2025. This innovative chip will utilize an advanced 18A process node, aiming to enhance performance in both high-end laptops and ultra-low-power devices. Panther Lake isn't merely a step in Intel's mobile processing strategy; it represents a pivotal point for Intel's foundry business to potentially regain its footing.

The Panther Lake SoC is designed with Cougar Cove performance cores paired with Darkmont efficiency cores. Although Intel initially planned to incorporate Skymont efficiency cores, the choice ultimately fell on Darkmont, likely to better balance performance with energy conservation. These cores have been fine-tuned for multitasking and energy-efficient operations, making them ideal for devices ranging from ultra-thin laptops to powerful computing devices. The SoC also integrates Xe3 Celestial graphics cores, with configurations reaching up to 12 cores. This marks a significant boost in graphical capabilities over the preceding Lunar Lake's Battlemage Xe2 cores. According to leaked benchmark data, the Xe3 delivers approximately a 20 percent increase over the Xe2 in 3DMark Time Spy, promising smoother gameplay and swifter rendering speeds for gamers and content creators alike.

Breaking down the Panther Lake series, we find it divided into the PTL-H and PTL-U lines. The PTL-H series targets high-performance devices, with thermal design power consumption ranging from 25W to 45W, suiting gaming laptops and workstations. Notably, one PTL-H configuration includes 4 performance cores, 8 efficiency cores, 4 low-power efficiency cores, and 4 Xe3 cores with a TDP of 45W and a peak PL2 power of 80W. Another setup maintains the same core count but features 12 Xe3 cores, reducing TDP to 25W and peak PL2 power to 64W. This reduction in power for configurations with more Xe3 cores might be attributed to adjusting GPU clock frequencies or voltage optimizations, enhancing practicality in slimmer laptops, though possibly at the cost of high-load performance in tasks like 4K video editing or top-tier gaming graphics.

Conversely, the PTL-U series excels in ultra-low power use, marked by a TDP of just 15W. It incorporates four performance cores, four low-power efficiency cores, and four Xe3 cores, peaking at PL2 power of 54W, fitting for ultra-light laptops and 2-in-1 devices. A compelling feature of Panther Lake is its AI capabilities. Equipped with a fifth-generation neural processing unit, it harnesses combined CPU and GPU might to achieve up to 180 TOPS of platform computation, segmented as 50 TOPS from the NPU, 120 TOPS from the GPU, and 10 TOPS from the CPU, all at INT8 precision. This leap from Lunar Lake's 120 TOPS significantly enhances Panther Lake’s capacity to manage real-time image processing, speech recognition, and generative AI workloads. Yet, Intel's AI ecosystem lags, competing against NVIDIA’s CUDA and Apple’s Core ML, both offering more comprehensive developer support and software optimization.

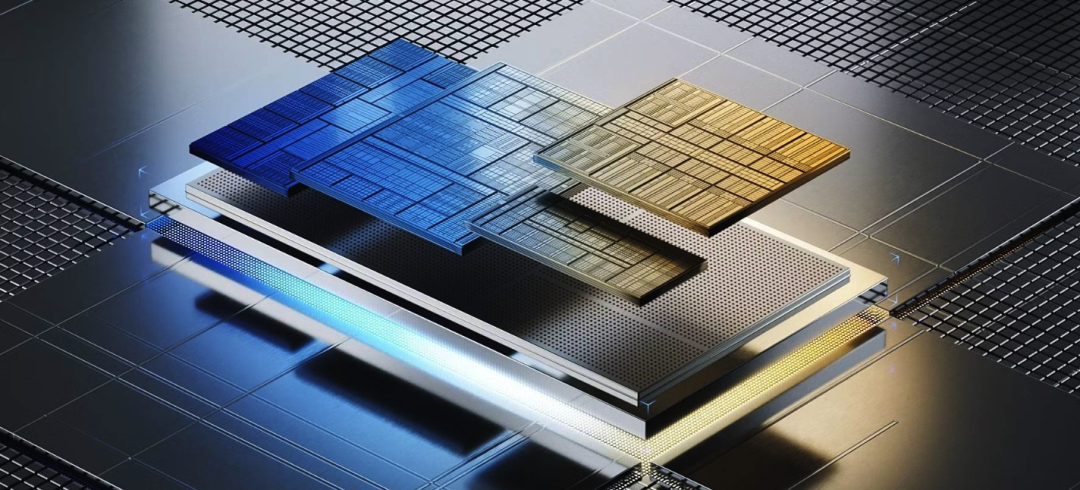

On the memory and connectivity front, Panther Lake supports LPDDR5X with speeds up to 8533 MT/s and DDR5 at 7200 MT/s, while some models are compatible with LPCAMM2 modules, facilitating laptop upgrades while maintaining sleek designs. Connectivity is bolstered by four Thunderbolt 4 ports, with some variants supporting Thunderbolt 5.0 via a separate PCH controller, delivering transfer speeds up to 80Gbps—doubling Thunderbolt 4’s speed. This feature is advantageous for creators dealing with 8K displays or high-speed storage needs. Panther Lake’s design employs Foveros and EMIB packaging technologies to enhance chip integration and threading efficiency, though these complexities might drive up production costs, especially within the 45W high-power models. Efficient thermal management will be essential for manufacturers, potentially impacting device pricing. The core of Panther Lake’s technological advancement lies in the 18A process, featuring RibbonFET transistors and PowerVia backside power supply, offering about a 10% increase in transistor density and better energy efficiency compared to previous 7nm processes. The 18A process boasts a modest production cost advantage over TSMC's 2nm process, with Gartner estimating its wafer cost to be approximately 5% lower. Engineering samples have reached partners, with A0 and B0 step IDs indicating successful development phases and successful testing power-ups. However, the yields of this new process remain undetermined. Intel's prior volume production struggles at the 10nm and 7nm nodes had stalled progress for years and, as IDC reports, resulted in about a 20% market share loss. Should 18A production follow a similar rough path, Intel's 2026 supply plans might face setbacks. Furthermore, Intel’s foundry ambitions to challenge TSMC require not only technological breakthroughs but also the attraction of larger clientele as TSMC controls 60% of the global foundry market.

Panther Lake’s applications extend beyond the consumer sphere, featuring in Intel's Frisco Lake SoC designed for smart driving and automotive entertainment with integrated Xe3 core display and ARC media engine, handling multiple 4K video streams for in-vehicle interactions. Also, the Grizzly Lake SoC, based on Nova Lake architecture, features 32 efficiency cores and a 7 TFLOPS GPU to support demanding automotive computations, like real-time data processing essential for autonomous driving. The automotive sector is promising, with Statista predicting the smart vehicle chip market reaching $20 billion by 2030. However, Intel’s automotive market presence is nascent, competing against NVIDIA's head start with its Drive platform. Intel is also exploring the low-cost AI space with its Wildcat Lake series, targeted at entry-level AI PCs. Featuring two performance cores, four low-power efficiency cores, and two Xe3 cores, it offers 40 TOPS of computing power with a 15W TDP. This affordable option fits budget-conscious devices, such as Chromebooks for education, though its fewer cores may struggle under heavy workloads like video editing or multitasking, challenging its market appeal.

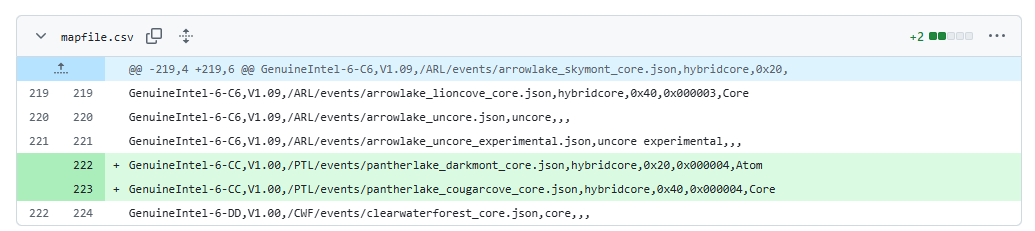

The evolution of Panther Lake appears to be progressing smoothly, with PCI ID leaks and engineering sample results pointing towards a secure launch. As the chip makes its grand entrance in the latter part of 2025, it will be a formidable competitor against AMD's Zen 5 and Apple's M-series processors. Nonetheless, Intel faces numerous obstacles. The conservative core count may hinder multi-threaded performance, exemplified by the Cinebench R23 multi-core benchmark where AMD’s Ryzen 9 7945HX nearly reached 30,000 against Panther Lake’s anticipated 20,000. In addition, Intel's AI ecosystem limitations may prevent the full utilization of its 180 TOPS computing capability. Further risks loom around the 18A process mass production, alongside expanding its foundry customer base. Effective thermal designs will also be crucial, as the PTL-H model with a 45W TDP may demand thicker designs or louder cooling fans, which could be less appealing to users wanting quieter, sleeker notebooks. In summary, the Panther Lake SoC illustrates Intel's bold vision for advancing mobile computing and semiconductor technology. With 180 TOPS in AI performance, robust Xe3 cores, and rapid Thunderbolt 5.0 connectivity, high expectations will be in place. However, hurdles like its restrained core count, a nascent AI ecosystem, 18A production uncertainties, as well as thermal and cost challenges could impact market dynamics. Come 2025, Panther Lake will face AMD and Apple in a direct contest. Will Intel seize this moment to reclaim leadership in the mobile market with such innovation? The industry eagerly awaits.
